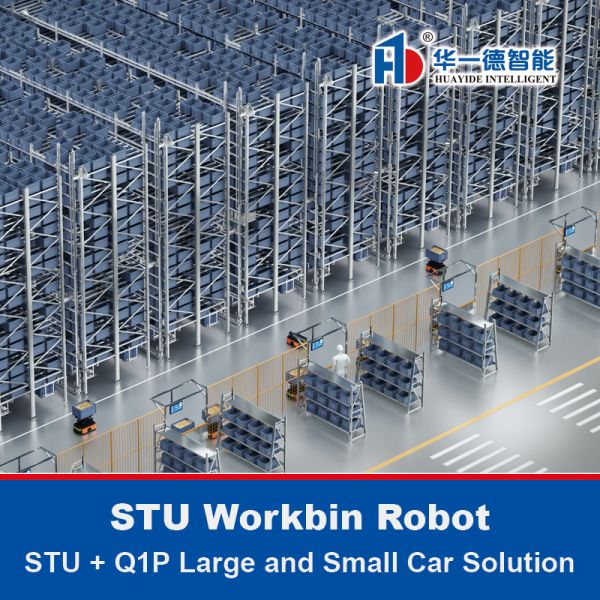

STU Workbin Robot
——
STU+Q1P Large and Small Car Solution
The STU material box robot is responsible for vertical and horizontal container handling between high-level shelves and buffer positions in the tunnel, while the Q1P (latent material box robot) is responsible for horizontal container transportation between buffer positions and workstations. The scheme uses a layer of cache bits as the handover bit between two devices, decoupling tasks and utilizing the advantages of different vehicle models to enable different devices to achieve higher utility.
Q1P:Maximum speed at no load 4m/s The two cars closely followed 2s
STU:Maximum speed of empty lateral walking 3m/s Maximum speed of longitudinal lifting without load 2m/s
Workbin Robot · AMR Autonomous Mobile · Made In China
The car is responsible for the horizontal transfer of material boxes between the buffer position and the workstation
| Lane length / 6m height docking | 20m | 40m | 60m |
| Efficiency estimate/(box/h): Composite operation (shelf+off shelf), double deep clamping, with a 25% container turnover ratio. | 155 | 132 | 120 |
Workbin Robot · AMR Autonomous Mobile · Made In China
Basic Plan Layout Composition
—
Layout considerations:
1) Shelf and Q1P channel layout according to TRP scheme (CTU large and small vehicles)
2) Maintenance plan: maintenance channel, maintenance area
3) Power supply scheme: electrical cabinet
4) Security door scheme: Reserve space for the security door
Workbin Robot · AMR Autonomous Mobile · Made In China
Repair Car
—
Complete Machine Repair Car Quick Exchange And Transfer:Quickly replace spare vehicles within 30 minutes
Cooperate with tooling operation for 20 minutes to quickly replace components
Auxiliary support > Remove screws > Plug and unplug wiring harness
Quickly replace the driver within 10 minutes
Remove screws > plug and unplug wiring harness
Workbin Robot · AMR Autonomous Mobile · Made In China
ABOUT US
—
Anhui Huayide Intelligent Storage Equipment Co., Ltd. (the promitive name Anhui Huarunde logictics equipment Co., Ltd, Establised in 2009) is located in Hefei Binhu Science City, Anhui Province. It focuses on the development and promotion of intelligent logistics equipment, integrating scientific research and development, manufacturing, system integration, marketing and engineering services, committed to providing world-class internationally competitive intelligent logistics equipment, products and solutions, covered automation and intelligent manufacturing. Our products are widely used in power, automotive, chemical, logistics, public utilities, manufacturing and other industries.
We have strong technical, relying on the deep cooperation between Anhui Polytechnic University, research institute of University of Science and Technology of China and well-known enterprises. In the process of product research and development, it has absorbed a large number of advanced technologies and concepts,possesses comprehensive technical research and development capabilities of intelligent logistics equipment. We have extremely profound accomplishments project planning, intelligent manufacturing, intelligent electrical control, computer software development, and engineering project management .
We have:
professional shelf raw material strength testing machine , column load testing machines and beam load testing machines.
We have:
a complete set of shelf surface coating quality testing equipment: cross-cut testing machine, cupping testing machine, electronic magnetic thickness gauge, gloss measuring instrument, salt spray testing machine, etc.
We have passed :
IS09001 quality system certification, IS014001 environmental system certification, ISO18001 occupational health system certification. Tested by the European research institute, we passed various indicators such as safety and environmental protection, obtained CE certification, and obtained a sales pass to enter the European market.
Company Details ( Click to enter )
Production Line ( Click to enter )
Contact Us ( Click to enter )
Workbin Robot · AMR Autonomous Mobile · Made In China
