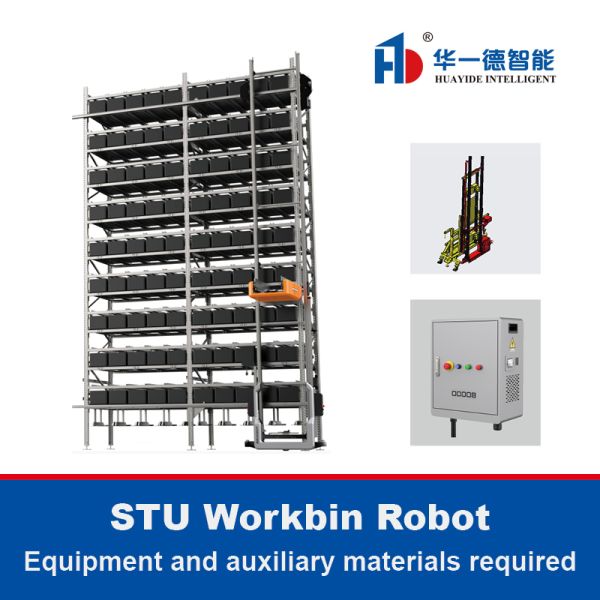

Equipment and auxiliary materials required
——
For Stu Material Box Robot
Power Supply And Walking
—
Equipment and auxiliary materials required
Sliding contact line
1) Finger anti misoperation design 2) Installation on the lower track 3) 48V DC
Walking positioning code
1) Each continuous shelf has 1 strip on top and 1 strip on the bottom
2) Cannot be truncated for multiple shelves
Walking track
1) 1 track each for the upper and lower tracks
2) Maintenance area shelves also need to be configured
Electrical Cabinet
1) 1 roadway ≥ 1 unit
2) Select 4KW and 8KW based on the number of STUs in the tunnel
3) Maintenance area shelves also need to be configured
Safety Door
1) Configuration at both ends of the tunnel 2) Controller integrated into electrical cabinet
3) Electric door lock: 1. Warning sign 2, padlock 1, etc
Workbin Robot · AMR Autonomous Mobile · Made In China
Repair Car
—
Equipment and auxiliary materials required
Complete Machine Repair Car Quick Exchange And Transfer:Quickly replace spare vehicles within 30 minutes
Cooperate with tooling operation for 20 minutes to quickly replace components
Auxiliary support > Remove screws > Plug and unplug wiring harness
Quickly replace the driver within 10 minutes
Remove screws > plug and unplug wiring harness
It is recommended to equip 2 work trucks for each project, with a minimum of 1
● A car is equipped with one backup STU machine ● B car is empty
When using
● B car quickly replaced the abnormal car ● A car quickly put the spare car on the shelves
Workbin Robot · AMR Autonomous Mobile · Made In China
Robot equipment
—
Equipment and auxiliary materials required
| Number | Name | Technical
Specifications | Quantity | Remarks and Notes | Unit |
| 1 | Busbar | | On Demand | 1.Sliding contact line length=(length of each tunnel+1m) * number of tunnels 2.If there is a maintenance area, maintenance area shelves, and sliding contact lines in the design, they need to be selected, and the length=the length of the maintenance area shelves; | Meter |
| 2 | STU walking track | | On Demand | 1.The length of the track within a height of 8m=(length of the rack with STU installed+3m) * 2; 2.Evaluate separately for heights exceeding 8m 3.The tracks of the maintenance area shelves need to be selected synchronously: length=shelf length * 2 * shelf quantity | Meter |
| 3 | STU Power Supply &Lane Door Control Cabinet | 4KW/STU 220V AC/ | On Demand | 1.At least one unit shall be installed on the side of the shelf in each aisle, and one vehicle shall be used in each aisle; 2.The power supply cabinets for the newly added maintenance area shelves need to be selected synchronously, with one shelf and one vehicle selected, and no less than one shelf (the selection of power cabinets for the maintenance area shelves should be based on needs) | Piece |
| 4 | STU power supply &lane door control cabinet (1 electrical cabinet for
2-3 cars+1 l ane door control) | 8KW/STU 220V AC | On Demand | 1.At least one unit shall be installed on the side of the shelf in each aisle, and 2-3 vehicles shall be used in each aisle; If there are more than 3 vehicles in one roadway, 2 vehicles need to be selected. 2.The current project aims to control the number of vehicles in a tunnel below 6. If the number exceeds 6, please confirm and contact the product 3.The power supply cabinets for the newly added maintenance area shelves need to be selected simultaneously, with 2-3 vehicles selected for each shelf and no less than one for each shelf (the selection of power cabinets for the maintenance area shelves should be based on needs) | Piece |
| 5 | STU maintenance work- ers load vehicles | | 2 | 1.Quickly replace the STU matching truck when STU is abnormal; 2.Quantity is 2, one empty vehicle (used for dismantling damaged STU, and one full vehi- cle (equipped with spare machine for direct replacement); 3.The specific quantity will be determined according to the plan, with a minimum quantity of 1 | Set |
Workbin Robot · AMR Autonomous Mobile · Made In China
Outsourced Equipment
—
Equipment and auxiliary materials required
| Number | Name | Technical Specifications | Quantity | Remarks and Notes | Unit |
| 1 | Aerial work platform | | 1 | Optional, provided according to customer needs; Some customers rent on-site, while others purchase | Set |
| 2 | Tunnel safety components | Aerial work platform tunnel safety components | On demand | Lane safety: Each lane is equipped with one set, includ- ing one electronic door lock, two warning signs, one padlock, etc | Set |
Workbin Robot · AMR Autonomous Mobile · Made In China
Implement Supporting Facilities
—
Equipment and auxiliary materials required
| Number | Name | Technical Specifications | Quantity | Remarks and Notes | Unit |
| 1 | Position code | 40 * 40 QR code | On Demand | Statistics by warehouse number | Piece |
| 2 | Stu walking code | 60m/40m/20m, T-STU
shelf code | On Demand | 1.There are a total of 2 items on each consecutive shelf, and they cannot be cut off for use on multiple shelves. Each item is used once; 2.Considering that there may be errors or damages in the implementation of code pasting, it is recommended to have a required quantity of 1.1 for material preparation, rounded up- wards | Piece |
| 3 | Imple- mentation toolkit | Various implementation tools | On Demand | | Set |
Workbin Robot · AMR Autonomous Mobile · Made In China
Workbin Robot · AMR Autonomous Mobile · Made In China
